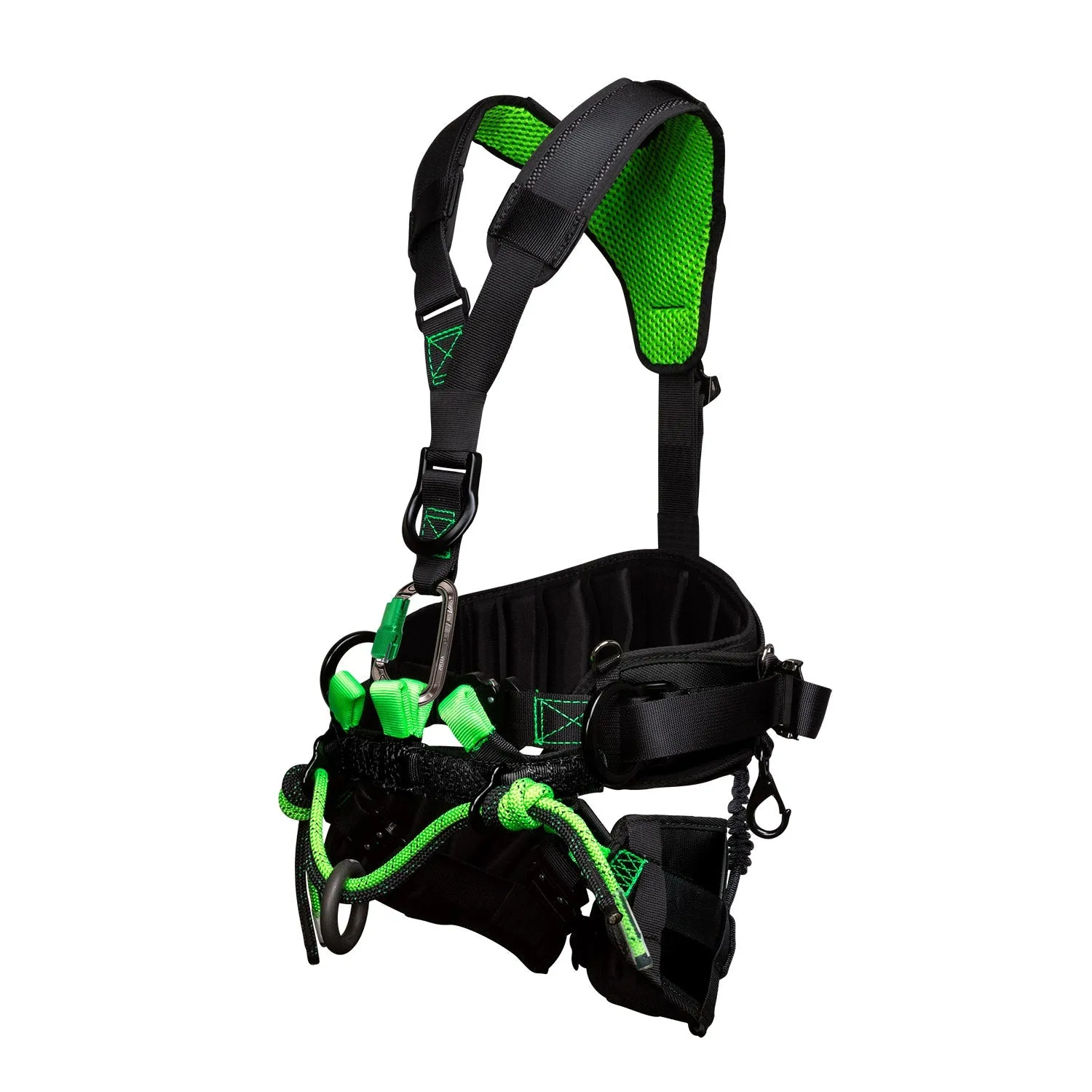

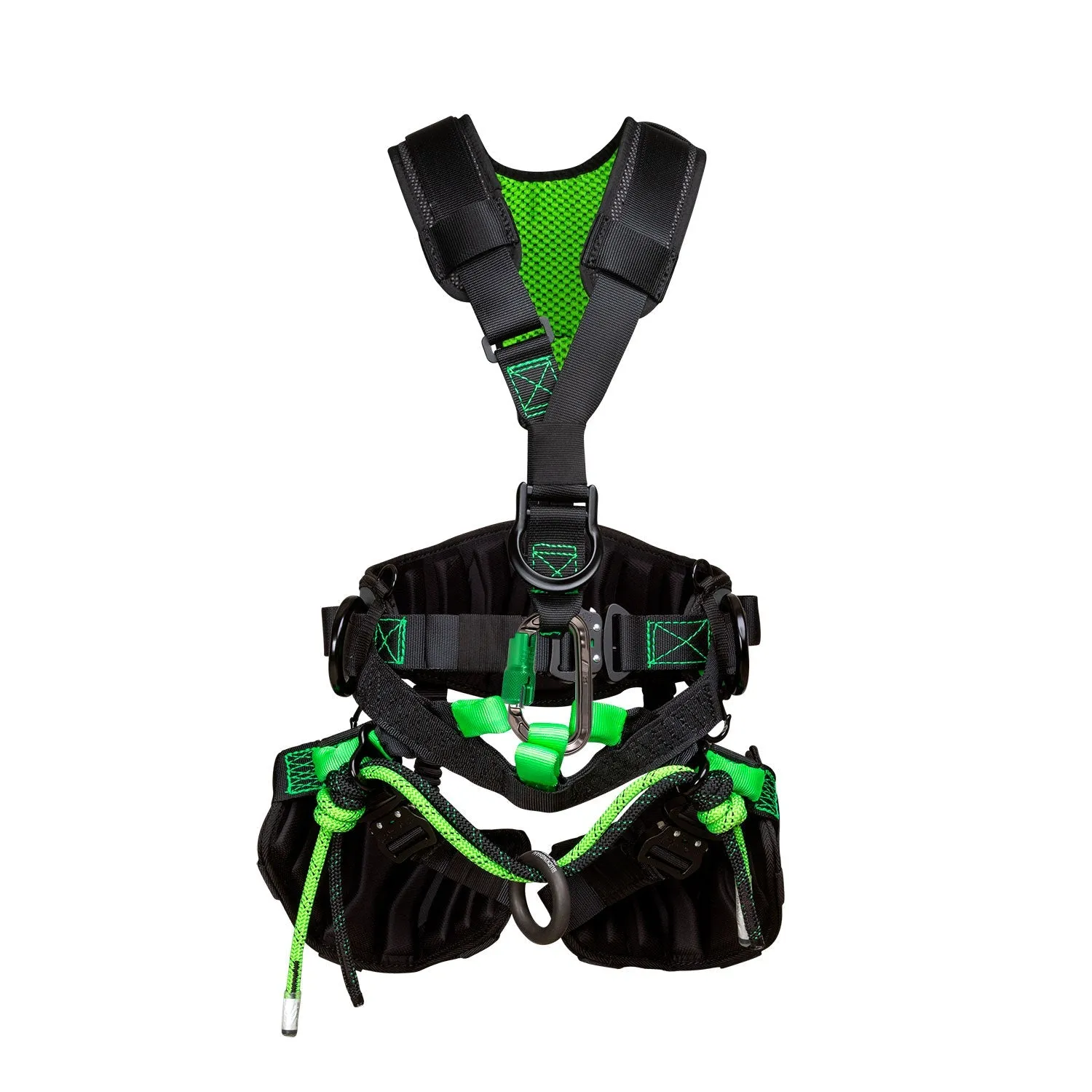

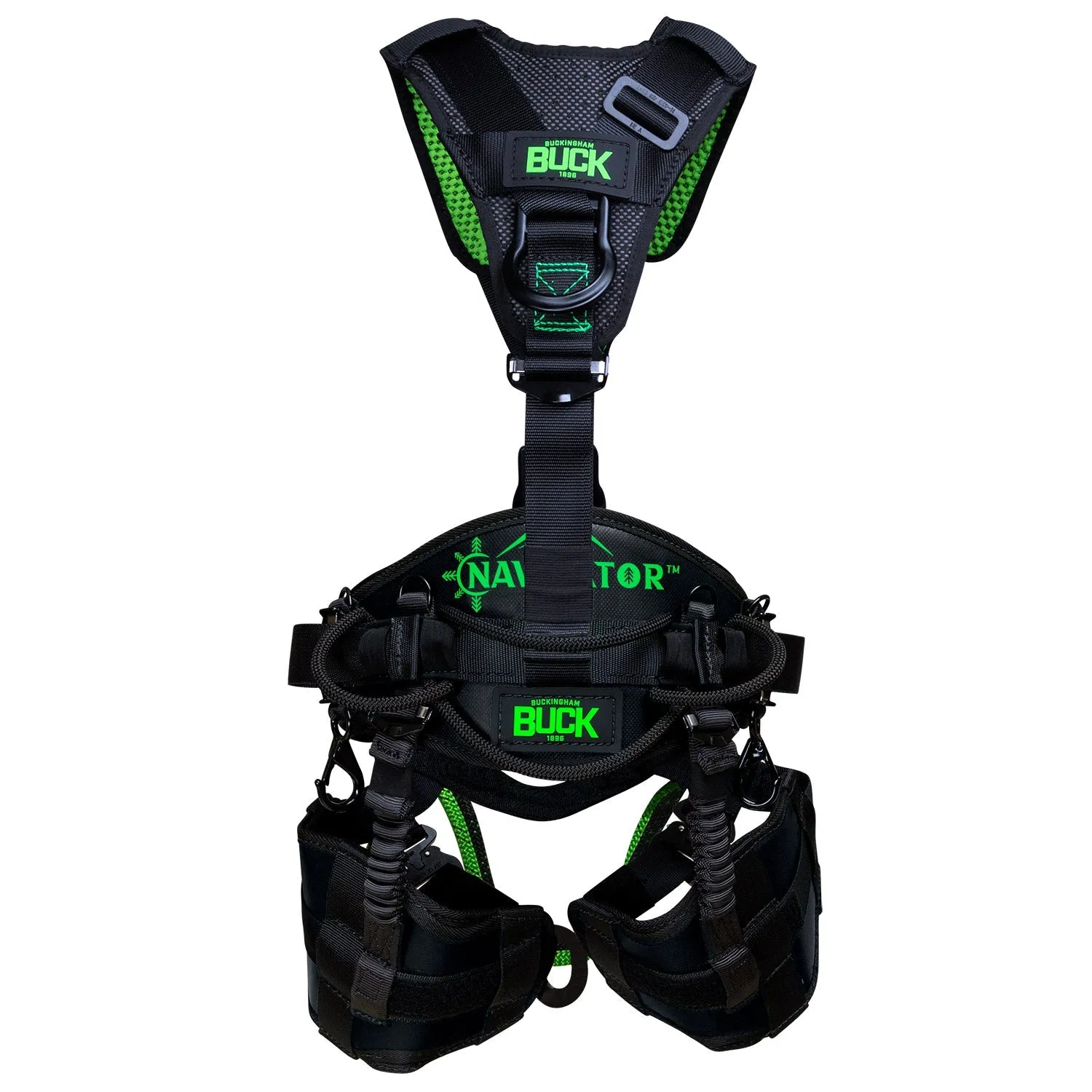

From fall arrest, to fall restraint, to work positioning, Buckingham’s Navigator™ tree saddle and harness combo covers it all. This saddle is the latest development in conjunction with the team at ArborMaster®.
This saddle-harness combination is rated for fall arrest so it can be used for fall protection in a bucket truck. This combo is ideal for those who like to transition from the bucket to the tree all while keeping you in compliance with OSHA standards.
Features:
- Designed to fit a range of climbing styles and motions.
- 4 elastic keepers make for a snug fit and limit loose webbing from your adjustment points from getting in the way of work or climbing.
- Lightweight: just under 8 lbs.
- Lightweight aluminum attachment carabiner for the harness.
- Full floating suspension ring.
- Specially designed air-flow leg pads to properly support you while suspended or positioning.
- Dual rope bridge or option for a segmented pocket dual rope bridge.
- Specially designed for DRT and SRT.
- Cool-Flow™ shoulder padding that is extremely comfortable.
- Lightweight aluminum dorsal & sternal D-rings.
Product Specifications:
| Product Number: | 1470H5 |
| Product Name: | The Navigator™ with Retro ‘Y” Harness |
| Saddle Product Specifications: | |
| Model Number: | 1470 (S-X) |
| Product Name: | Navigator Saddle |
| Waist Strap Connection Type: | Quick Connect Buckle |
| Suspension Adjustment Type: | Friction Buckles |
| Leg Strap Connection Type: | Quick Connect Buckles |
| Buckle Material: | Aluminum |
| Number of Dee Rings: | 2 |
| D-ring Material: | Aluminum |
| Belt Strap Material: | Nylon |
| Back Pad Material: | Compression Molded Padding |
| Accessory Snap / Ring: | Yes |
| Floating Suspension Ring: | Yes (5000 lbs. 1-7/8″ Eye Aluminum Ring) |
| Bridge Type: | Double Rope Bridge (3/8" Static Line ) |
| Bridge Length: | 40" |
| Suspender Attachment Rings: | Yes |
| Gear Loops/Hangers: | Yes (4) |
| Chainsaw Hanger Slots: | Yes |
| First Aid Pouch Storage | Yes |
| Back Pad Width: | 8″ |
| Waist Strap Width: | 1 3/4″ |
| Thread / Stitching: | Nylon |
| Product Type: | Work Position |
| User Weight Capacity: | 350 lbs. |
| Weight: | 6.15 lbs. |
| Standards: | ASTM F887 |
| Retro Harness Product Specifications: | |
| Product Name: | Navigator™ Retro Fit "Y" Style Harness (REH5) |
| Part Number: | REH5 |
| Material: | Nylon Web |
| Thread Stitching: | Nylon |
| Torso Adjustment: | Yes |
| Dorsal Attachment: | Aluminum D-ring |
| Sternal Attachment | Aluminum D-ring |
| Shoulder Pads: | Yes |
| Shoulder Pad Type: | Nylon Webbing / Elastic /Cool-Flow™ Padding |
| Harness Type: | Y |
| Retrieval Attachments: | No |
| Saddle Attachments: | Aluminum Carabiner / Nylon Web w/ Friction Buckle |
| Size: | One size fits most |
| Product Type: | Fall Arrest | Fall Restraint | Suspension | Work Positioning |
| User Weight Capacity: | Rated to 420 lbs. when used with equivalently rated accessories. |
| Weight: | 1.62 lbs. |
