Third Function Kit Compatible with CK Series w/o Factory Installed Rear Remote

Models w/ 4030 Loaders

Front third functions are essential to subcompact tractors but it helps to have an easy way to add one. Kioti CK Tractor owners need to hear about Summit Hydraulics’ complete third function kit! This allows you to add an electronically controlled hydraulic function to your tractor. The valve mounts onto your front end loader for easy maintenance and removal.

Commonly used to add:

• Grapple
• Auger
• Fork
• Blade

This kit is operated using the power beyond port and return to tank port. Unlike diverter valves, you can use multiple functions (i.e. curl bucket and close grapple) in conjunction with your new one with this kit.

Joystick Handle:

• Ergonomic design with two momentary push button switches
• Fully weatherproof
• Mounts on existing loader joystick shaft
• Removable adapter bushings designed to fit any joystick shaft
• Connects to 12v power source, necessary for full usage
• Wiring Harness uses Deutsch environmentally sealed connections for great functionality in harsh weather

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated

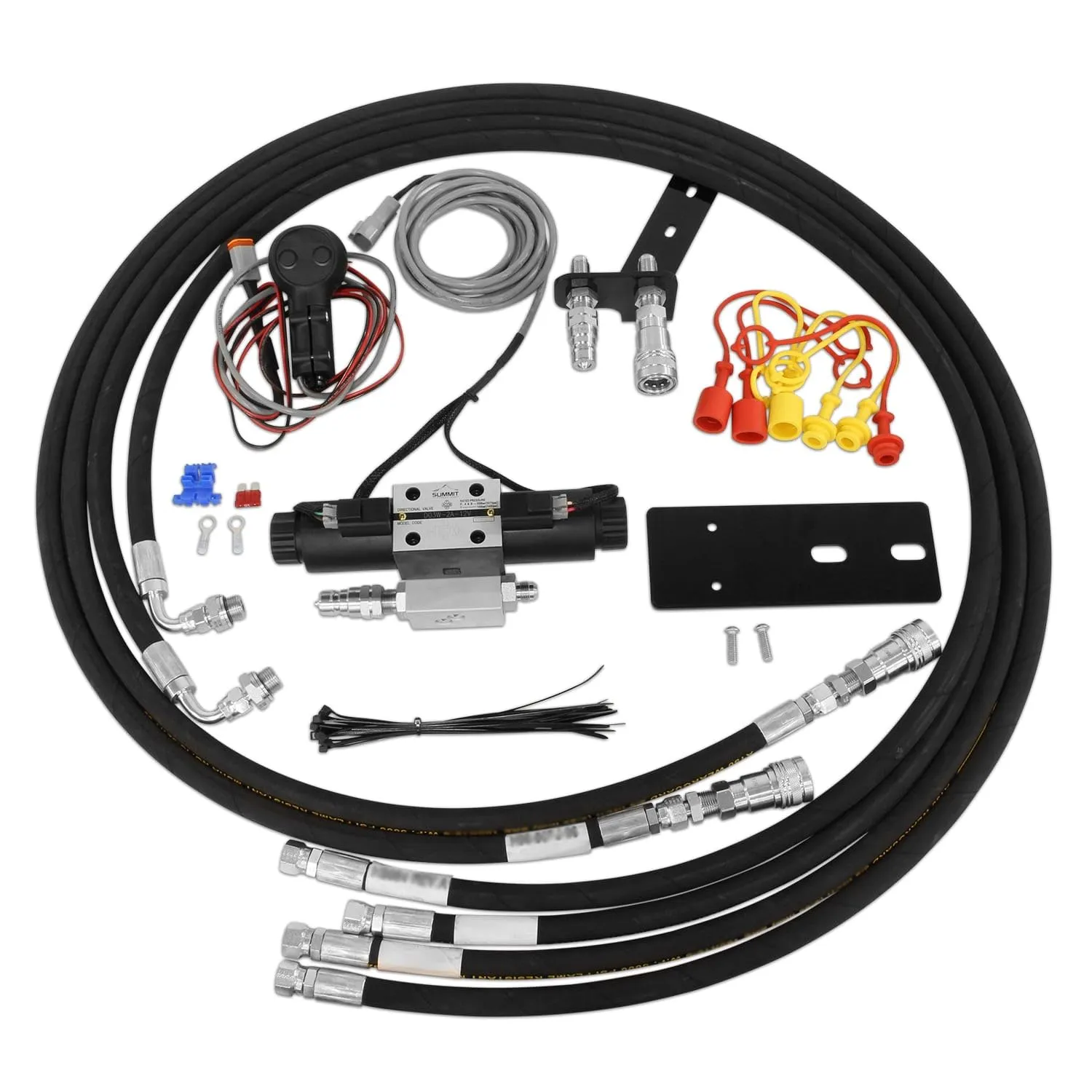

Kit Includes:

• 12v solenoid operated valve
• Joystick handle with 2 momentary push button switches
• Wiring harness with weatherproof Deutsch connectors
• Valve mounting bracket (including hardware)
• Quick coupler mounting bracket (including hardware)
• 1/4” Body ISO 5675 Agricultural Female / Male Couplers
• Assorted dust caps
• Hydraulic hose assemblies
• Adapters & fittings

May not be compatible with some optional equipment like side view mirror kits.

• Date First Available ‏ : ‎ December 18, 2023
• Manufacturer ‏ : ‎ Summit Hydraulics
