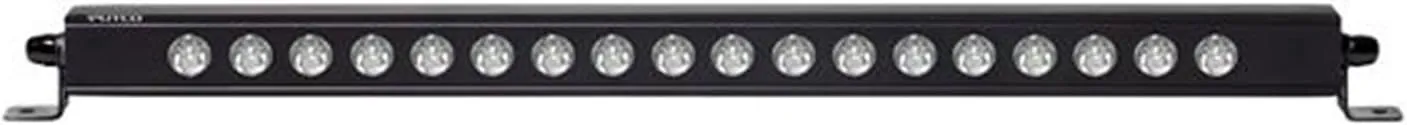

- 20" bar featuring 18 LEDs with 6000k color temperature
- Output: 7,200 Lumens. 54 Watts. Amp draw: 4.5A. Works on 12V-36V power
- Constructed of black anodized 6061 billet aluminum and IP69K rated for dust and moisture protection. Loaded with Nichia LEDs with a 50,000 hour bulb life and 15 degree focus lenses that concentrate the light beam path
- Incredibly thin and light at just .75 inches deep and 1.5 inches tall while remaining strong and durable through all the rigors of offroad use
- 100% Manufactured by Putco in Des Moines, IA – Made in the USA
High Power LED Light Bars
Putco’s High Power Luminix LED Light Bars deliver high quality, universal bright lighting from a package that is 300% smaller than other light bars on the market. Each bar comes fully assembled and ready to mount on your truck, ATV, or to any area that you need high power LED lighting.

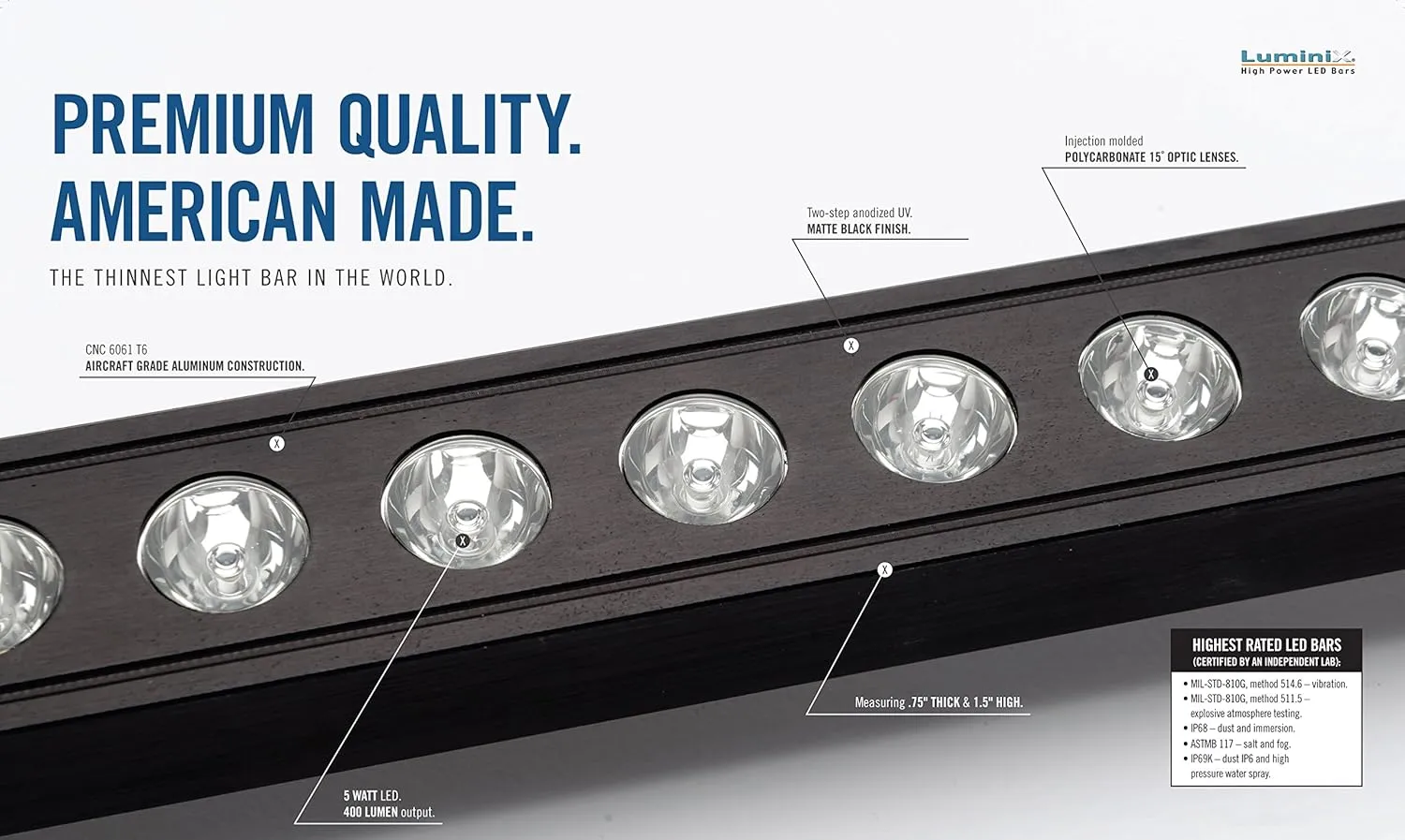

Putco’s Light Bars are constructed of black anodized 6061 billet aluminum, feature Nichia 5W LEDs, and focus lenses that concentrate the light beam path. The miniaturized size of this bar makes it ideal for installation in narrow openings.
The bars are available in 3.5 x 4.5” up to 70” lengths and include a wiring harness and standard mounting hardware. No electrical hum.
Design
- Measuring .75” x 1.5” depth, from 3.5” x 4.5” up to 70” lengths, this is the thinnest and lowest weight light bar available
- Fully potted to withstand the rigors of outdoor use
- 15 degree focus lenses with outputs from 1200LM to 27600LM
- Anodized matte black finish
- Luminix LED Light Bars are manufactured and assembled by Putco in the USA
Materials
- Solid state design packed inside 6000 series aluminum
- High quality Nichia LEDs accomplish high lumen outputs with 5 watts per LED
- Full wiring harness with Deutsche connectors included
- Stainless steel mounting hardware
Performance
- 6000K color temperature
- IP69K rated for dust and moisture protection
- 50,000 hour LED bulb life
- All Putco Luminix light bars are rated for 12V to 36V right out of the box
- Includes thermal control chips, over/under voltage protection
- Operating temperature of -100 degrees F to 180 degrees F
