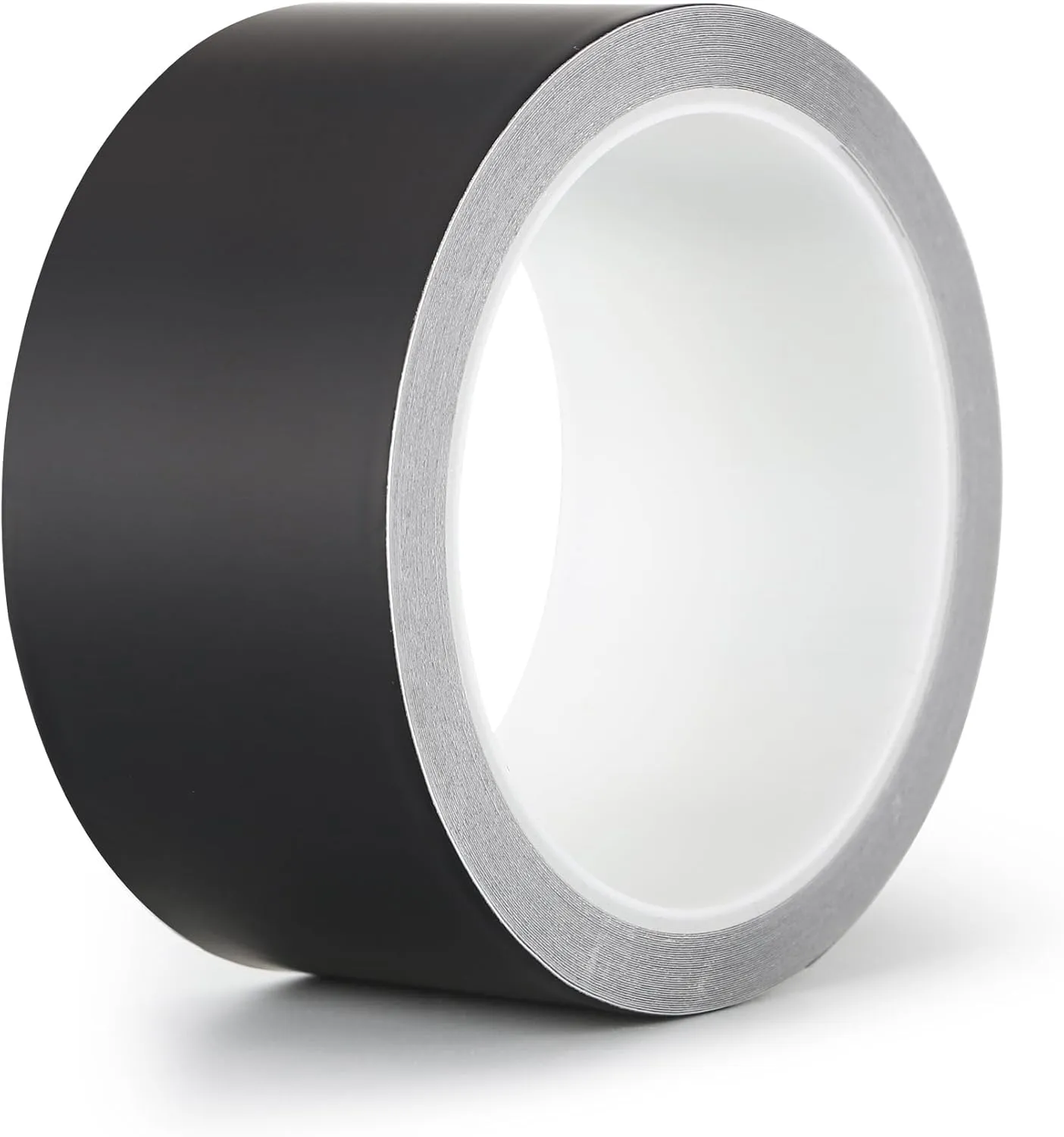

- INTRODUCTION: LLPT matt aluminum foil tape is constructed with 3 layers. The top is nano carbon material which is uniformly painted on aluminum foil and will not get rid of the black layer in cold or hot, weatherproof, long lasting painting to anti scratch-off, converts heat energy into infrared-radio frequency by high thermal radiation efficiency of carbon atom to transfer heat dissipation efficiency; the middle layer is aluminum foil and the 3rd layer is pressure sensitive acrylic adhesive.
- PRODUCT FEATURE: High thermal conductivity(w/m-k 400-2500), thermal radiation (1000-6000) and flexibility; Supreme performance on resistance of flame, vapor, moisture, ultraviolet (UV), weather, cold, heat, oil, smoke and etc with acrylic coated adhesive. LLPT Nano Carbon Aluminum Foil stays high stability and strength for long life support, great efficiency on cooling and heating with operational temperature from -30°C to 260°C. Works 10 times better than traditional graphite sheet.
- APPLICATION: Industrial grade, efficient thermal conduction for HVAC systems, AC units, heaters, vents, metal finishing, electronics, automotive, aerospace, recreational vehicle, construction, industrial/home air duct, kitchen masking to avoid oil in gap, sealing, seaming, heat shielding, harness wrapping, joining, vibration damping, electroplating, plastic protection, milling, paint stripping and so on.
- INSTALLATION: Simply wrap or cut the size you need, peel off the backing and stick the tape to the object with hard press. The coated acrylic adhesive is extremely strong but is still easy to remove without any residue, cut, tear and peel. Pressure sensitive black foil tape enables to be fit on corrugated or irregular corners and joints. Very high bonding for plastic, ceramic, concrete, copper/brass and other metals.
- DURABLE BLACK COATING: LLPT black aluminum foil tape not only offers superior durability and heat resistance but also boasts a sleek appearance that adds a touch of sophistication to your projects. Whether used for HVAC repairs, automotive applications, or DIY projects, its versatile design ensures reliable adhesion and long-lasting performance while maintaining a sleek and professional look. Elevate your projects with the perfect combination of style and functionality with our black aluminum foil tape.
PRODUCT PARAMETERS::
1.Thickness: ASTM D374 0.1mm/3.94 mil thickness on aluminum foil3.2 mil thickness on backing liner.
2.Specific Gravity: ASTM D792 g/cm3 2.5.
3.Continuous Temperature Resistance: EN344 -40~ 250°C.
4.Tensil Strength: ASTM F-152 4900kpa 715PSI.
5.Volume Resistivity: ASTM D257 Ω/CM 1.0 x 1010.
6.Hardness: ASTM D2240 Shore A 80.
7.Flame Rating as per UL 94 V - 0.
8.Conductivity Ratio: ASTM D5470 w/m-k 400-2500.
PRODUCT FEATURE::
- Real industrial grade with long term basis.
- Withstands temperature from -40°C to 250°C.
- Extremely high tensile strength and stability.
- Strong adhesive, but residue free after removal.
- 3.94 mil thickness on aluminum foil, 3.2 mil thickness on backing liner.
- High coefficient of thermal radiation, reliable ESD, thermal conduction, electromagnetic shielding and interference (EMI).
- Nano carbon aluminum tape works the same as nano carbon copper tape, but it’s more competitive on price.
- Packed in single PE bag.
