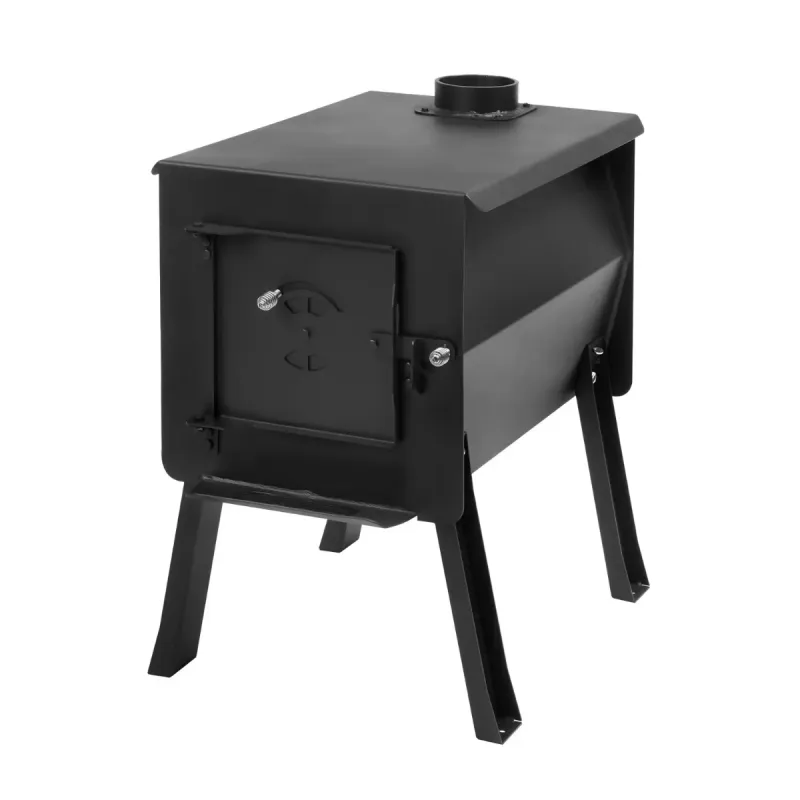

Black Bear Camp Stove Kit (ESW0033) by Englander

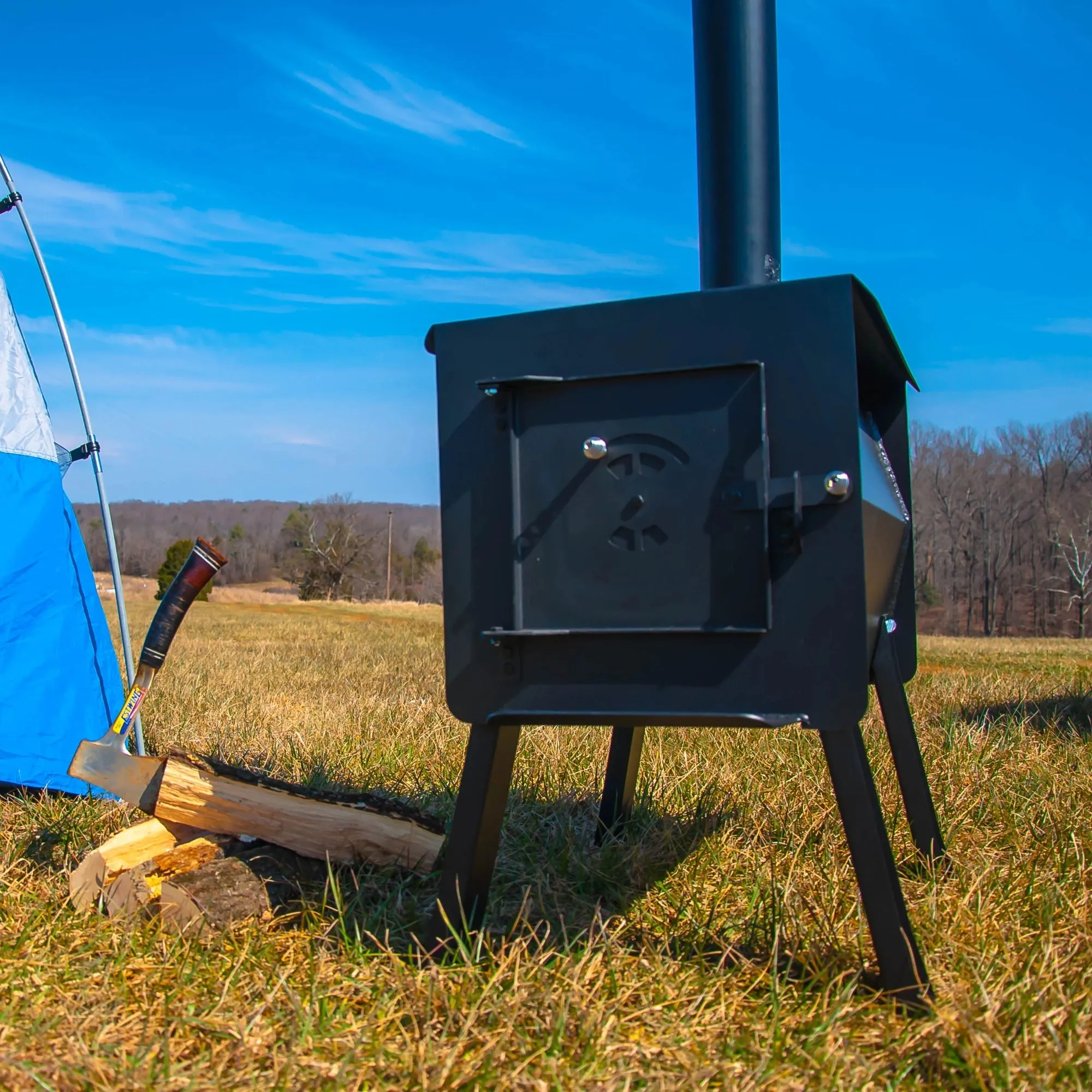

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors. Removable legs fit inside the stove body, and the stove's top edges are bent to double as handy carrying handles.
The 4” diameter pipe outlet is offset to provide maximum cooking space, and the top of the stove gets more than hot enough for cooking- this model can reach 700° F. The Black Bear is also large enough to heat wall tents up to 14' x 16'.

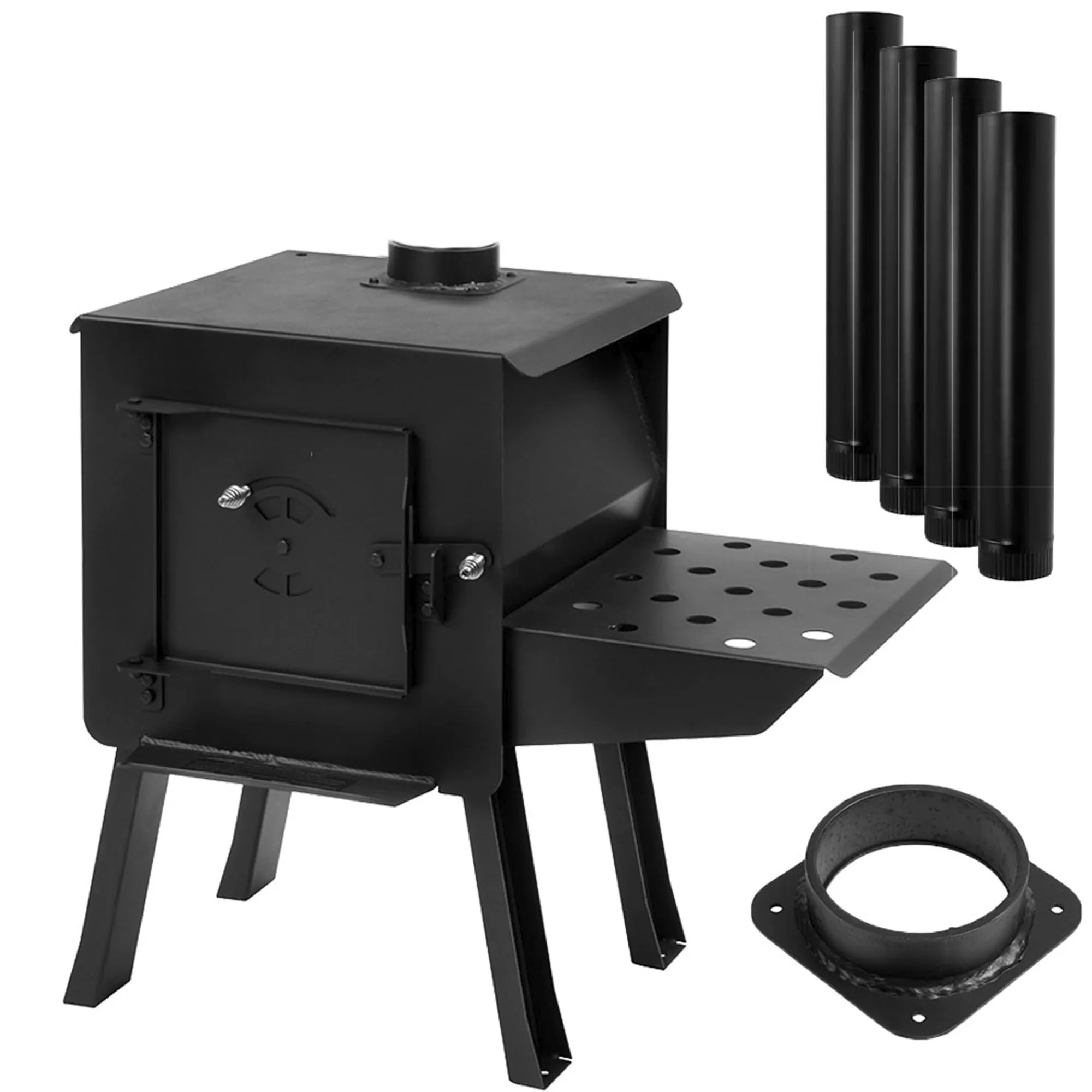

Kit Includes: "Black Bear" Campstove, Attachable Pipe Collar (AC-CSPC), Four 2' Pipe Sections (AC-CSPIPEKIT), Attachable Shelf (AC-CSSHELFS).
SPECIFICATIONS
| Fuel type | Dry cordwood |
| Overall firebox volume | 1.8 ft³ |
| Maximum log length | 14 1/2" |
| Shipping weight | 78 lb (35 kg) |
| Overall dimension (Width) | 17" |
| Overall dimension (Height) | 25 3/4" |
| Overall dimension (Depth) | 19 1/2" |
| Warranty | Limited 1 year to carbon steel and welds of firebox |
| Firebox size (Depth) | 15 1/2" |
| Flue outlet diameter | 4" |
| Door opening size (Height) | 8" |
| Mobile home approved | No |
| Distance-center of the flue outlet to side unit | 9" |
| Log positioning | Loading over depth |
| Canadian Standard (safety) | ULC S627 |
| Steel thickness-top | 12 Ga |
| Firebox size (Height) | 15" |
| Steel thickness-body | 12 Ga |
| Door opening size (Width) | 8" |
| Baffle type | |
| Distance-center of the flue outlet to back unit | 3 1/2" |
| Recommended chimney diameter | 4" |
| Door type | Steel |
| Firebox size (Width) | 14 1/2" |
CLEARANCE TO COMBUSTIBLES*
| Canada | United States | |||
| Single wall pipe | Double wall pipe | Single wall pipe | Double wall pipe | |
| Clearance - Back wall | 48" | 48" | 48" | 48" |
| Clearance - Side wall | 48" | 48" | 48" | 48" |
| Clearance - Corner | 48" | 48" | 48" | 48" |
| Clearance - Base of the unit to ceiling** | 77 1/2" | 77 1/2" | 77 1/2" | 77 1/2" |
