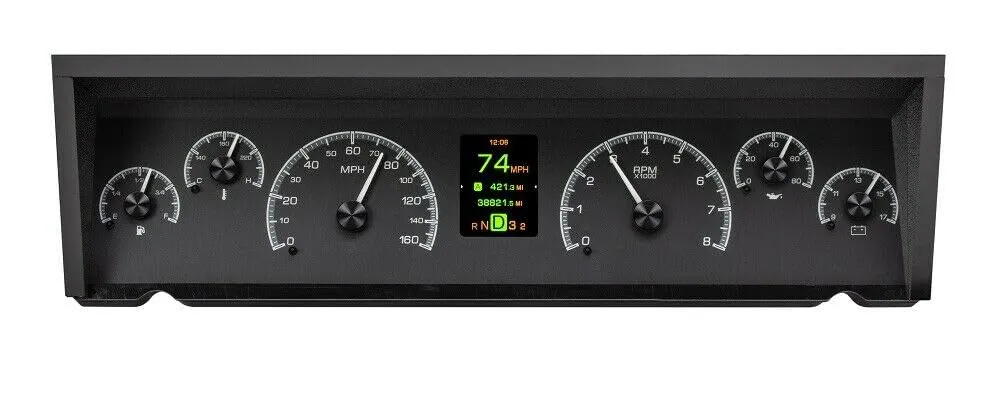

- Included Analog Gauges: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, and Fuel Level.
- Black alloy gauge-face styling, each HDX system allows the user to select their favorite illumination color for the gauge readings and needles, as well as the TFT message center displays.
- Various Indicators can be displayed in the Digital Message Centers: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Odometer, Clock, Trip Meter...
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
- Get your box Chevy lookin’ right with this bolt-in system! No cutting is required to have color-changing backlighting, full-color digital screens and mobile-app compatibility, but there will be a bit of wiring to complete the conversion. Installation and setup are easy whether you have a stock drivetrain or LS-conversion; we have you covered! Kit is compatible with 1977-90 Chevy B-bodies and 1984-86 Pontiac Parisienne.
This system is compatible with 1977-90 Chevy Caprice / Impala & 1984-86 Pontiac Parisienne. Get your box Chevy lookin’ right with this bolt-in system! No cutting is required to have color-changing backlighting, full-color digital screens and mobile-app compatibility, but there will be a bit of wiring to complete the conversion. Installation and setup are easy whether you have a stock drivetrain or LS-conversion; we have you covered!
Bezel is NOT included, shown for visual/demonstration purposes only. System uses OEM or reproduction style bezel.
Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.
RGB Backlighting: Set your own lighting colors to match your paint or current mood. Over 30 User-Selectable Display colors available. Select backlighting colors for the needles, digital display and printed gauge readings independently, or choose from one of 12 preset lighting themes.
Analog Gauges:
Speedometer - 0-160 MPH. Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF
Voltmeter - 9-17 VDC
Fuel Level - E, 1/4, 1/2, 3/4, F
Digital Message Centers: Odometer, Dual (A/B) Trip Meter, 12hr Clock...
- Is Discontinued By Manufacturer : No
- Department : Unisex Adult
- Date First Available : October 26, 2016
- Manufacturer : Dakota Digital
