- Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
- Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...
- Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
- A six-gauge, direct bolt-in replacement for 1995- 98 GM pickups and ’95- 00 SUV and HD models, complete with dedicated solid state sending units. This kit requires hardwiring into the stock harness; it is not a direct plug-in. Bezel shown in any pic is NOT included.
For 1995-98 Full-size Chevy / GMC Pickup and 1995-00 SUV & HD models
A six-gauge, direct bolt-in replacement for 1995-98 GM pickups and ’95-00 SUV and HD models, complete with dedicated solid state sending units. This kit requires hardwiring into the stock harness; it is not a direct plug-in. Update the look of your OBS dash while adding compatibility to whatever engine and transmission you are running.
System replaces the entire factory instrument cluster and lens assembly, fully remade with a billet aluminum housing and optical grade polycarbonate lenses.

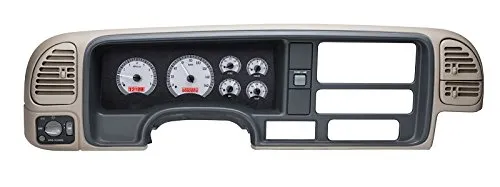

* Shown in OEM bezel/ trim/ fascia for demonstration purposes only (bezel/trim/fascia are not included).
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
- Is Discontinued By Manufacturer : No
- Package Dimensions : 24 x 14 x 7 inches; 11 Pounds
- Date First Available : September 24, 2016
- Manufacturer : Dakota Digital
