- Included Analog Displays: Speedometer, Tachometer, Oil Pressure, Clock, Water Temp, Voltmeter, and Fuel Level.
- Silver Alloy gauge-face styling. Each HDX system allows the user to select their favorite illumination color for the gauge readings and needles, as well as the TFT message center displays.
- Various Indicators can be displayed in the Digital Message Centers: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Odometer, Clock, Trip Meter...
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

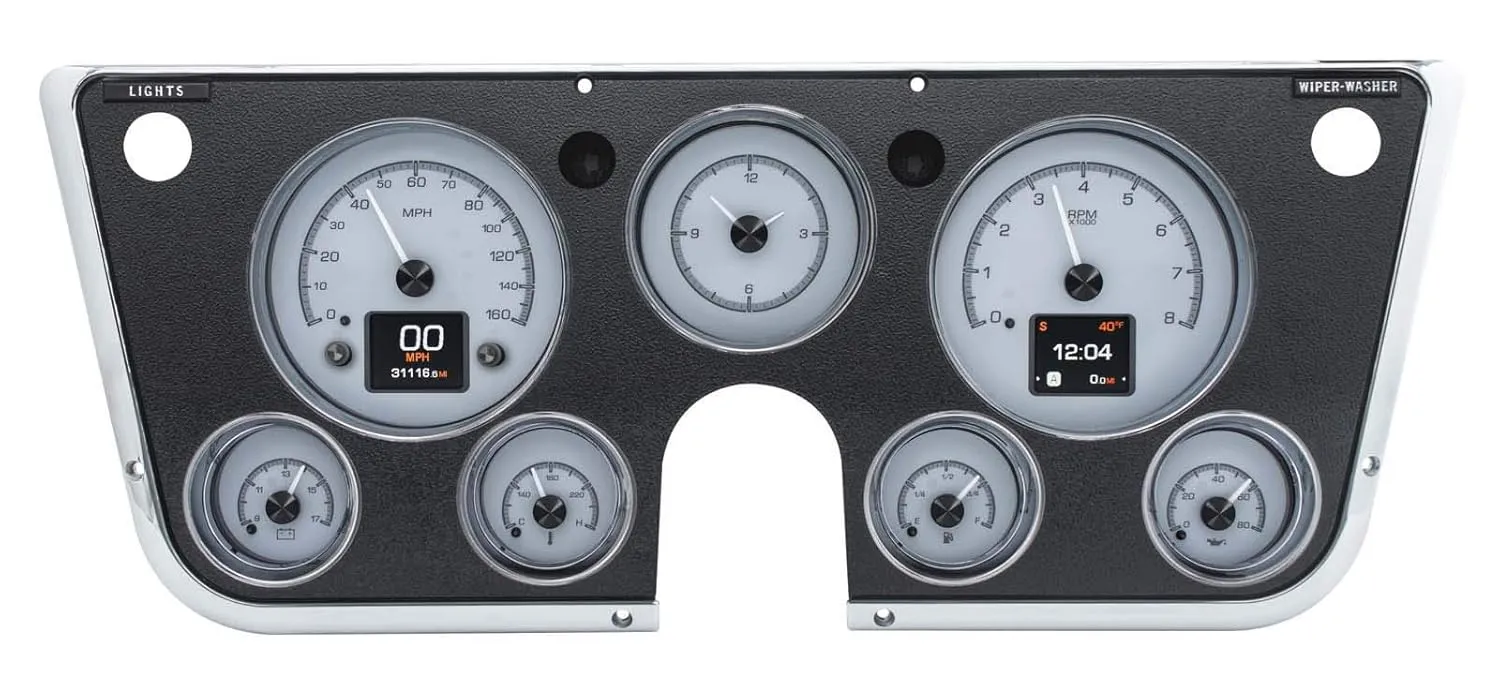

- HDX-67C-PU-S (silver alloy style) gauge system is compatible 1967-72 GM pickups, Blazers and Suburbans. They have a simple dashboard which offers plenty of space for personalization. Making use of a seven-hole instrument bezel, this system that boasts six analog instruments, along with a third LCD message center. Bezel is NOT included, shown for demonstration purposes only.
The original seven-hole cluster offers plenty of room, so why not fill it with the best? Six analog gauges plus a clock and twin TFT message centers make use of the space, ensuring the driver is in the know. System fits stock or reproduction dash bezel, available separately (bezel is NOT included).
*Bezel is not included, shown for visual/ presentation purposes.
System use OEM or reproduction style bezel.
Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.
RGB Backlighting: Set your own lighting colors to match your paint or current mood. Over 30 User-Selectable Display colors available. Select backlighting colors for the needles, digital display and printed gauge readings independently, or choose from one of 12 preset lighting themes.
- Is Discontinued By Manufacturer : No
- Package Dimensions : 24 x 14 x 7 inches; 9 Pounds
- Date First Available : October 26, 2016
- Manufacturer : Dakota Digital
