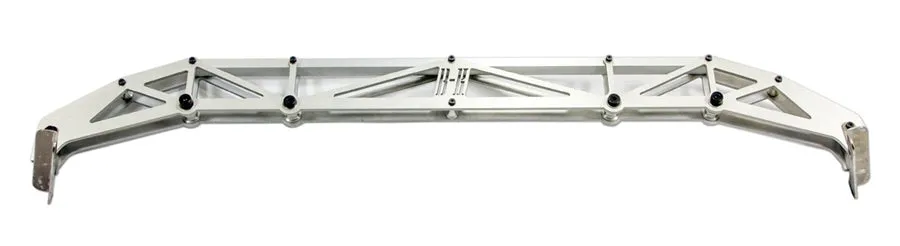

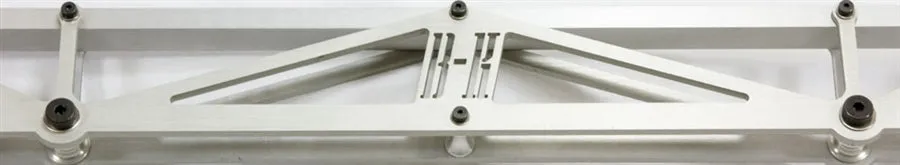

Elevate your driving experience with the precision engineering of Brey-Krause. In response to the many requests from Porsche drivers looking for a harness guide bar that would not only guide their driving harnesses but also allow them to mount their harnesses directly to the bar, we developed the "Harness Truss".
The Harness Truss has been tested and certified to handle the types of forces required by the National Highway Traffic Safety Admin. DOT and SAE J385 Rev. MAR 95, Motor Vehicle Seat Belt Anchorages-Performance Requirements. It's strong, yet it weighs only a fraction of what a support of the same strength made from tubular or bar steel would weigh.
The Harness Truss is precision water-jet machined for a perfect fit into Porsche factory mounting points. This type of machining is accurate and does not create heat affected areas in the metal which can alter tensile strength. Strength requirements for harness mounts are considerably greater than those for harness guide bars since they must support the entire load applied to the belts. A mount really can't be relied upon unless it has been tested to support the loads required by the National Highway Traffic Safety Administration.
Material: 6061-T6 aluminum skeleton and reinforcing bar. Type 304 stainless steel brackets.
Finish: Anodized aluminum with satin stainless mounting brackets.
Weight: 9.44 lbs.
Models: 911 Coupes '74 - '98
Installation: Bar attaches to factory mounting points in "B" pillars.
Miscellaneous: Harness Truss is designed to allow enough seat travel for tall drivers. The stainless steel mounting brackets can be left installed in the "B" pillars to easily remove and remount the bar in minutes.
Finish: Anodized aluminum with satin stainless mounting brackets.
Weight: 9.44 lbs.
Models: 911 Coupes '74 - '98
Installation: Bar attaches to factory mounting points in "B" pillars.
Miscellaneous: Harness Truss is designed to allow enough seat travel for tall drivers. The stainless steel mounting brackets can be left installed in the "B" pillars to easily remove and remount the bar in minutes.
NOTE: This bar is designed to be used as a harness guide, DO NOT mount the harness directly to this bar.
