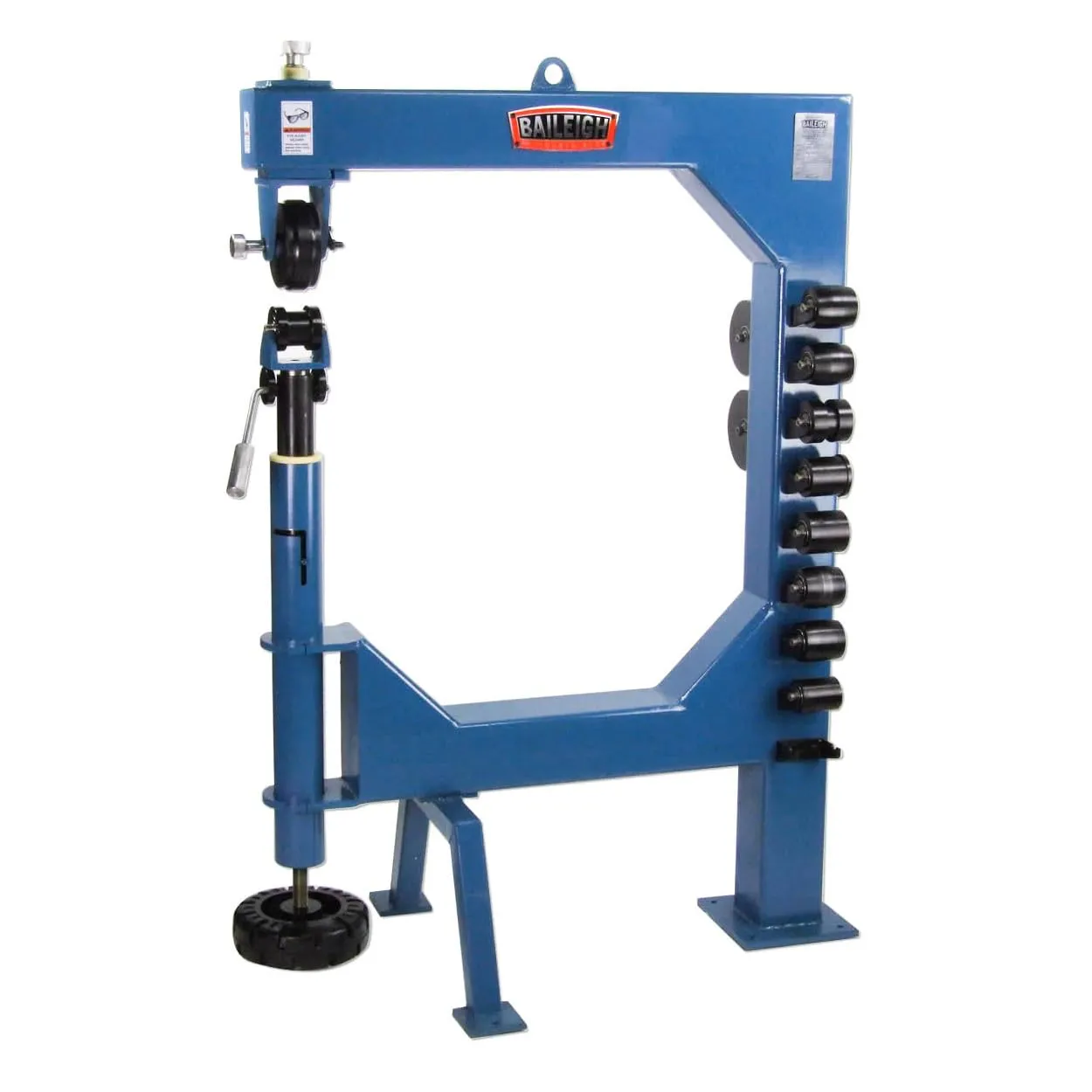

Name: Baileigh 40-Inch English Wheel, 16-Gauge Mild Steel (EW-40)
SKU: 777562

Ample 37.75" throat depth for forming 16-gauge mild steel (14-gauge aluminum)
3 upper wheels (6" x 2.25")
9 hardened bottom anvils: 0.125", .50", .75" edge radii; 6" x 2.24 crown radius; 2" flat rolls (x2); .313" x .25" step roll; and .75", 1.5" bead rolls
All upper wheels and lower anvils use sealed bearings
Swivel head lets you either push material directly into the throat or 90 degrees to it
Fully welded 5" x 5" x .250" box tubing framework prevents flex when rolling at full capacity
Tooling holder on the side of the machine gives you a convenient place to put your rolls

Every fabrication shop has to have a good quality English wheel to help in the correct forming of sheet metal. But not all wheels are made the same; strength, rigidity, and throat depth are the most important things when looking at an English wheel. The Baileigh EW-40 uses 5" x 5" x .250" box tubing for the frame work. This frame is fully welded for less flex when rolling at full capacity. This wheel is rated to form up to 16-gauge mild steel, giving your fabricating shop years of quality shaping and forming metal. The EW-40 wheel ships complete with nine bottom anvils and three 6" upper wheels, allowing the user to roll beads as well as form metal. Anvils come in 1/8", 1/2", and 3/4" edge radius, as well as a 6" crown radius. This wheel also comes with two flat rolls, a 5/16" x 1/4" step roll, as well as 1-1/2" and 5/8" round bead rolls. Another great feature of this English wheel is the ability to rotate the head, allowing the user to either push into the throat or at 90 degrees to it. A real rubber kick tensioner rounds out the package. This is one complete English wheel. Baileigh covers this English wheel with a one-year parts warranty and lifetime technical support by phone.

Package Dimensions ‏ : ‎ 67 x 48 x 14 inches; 407 Pounds
Date First Available ‏ : ‎ September 25, 2013
Manufacturer ‏ : ‎ JPW Industries
