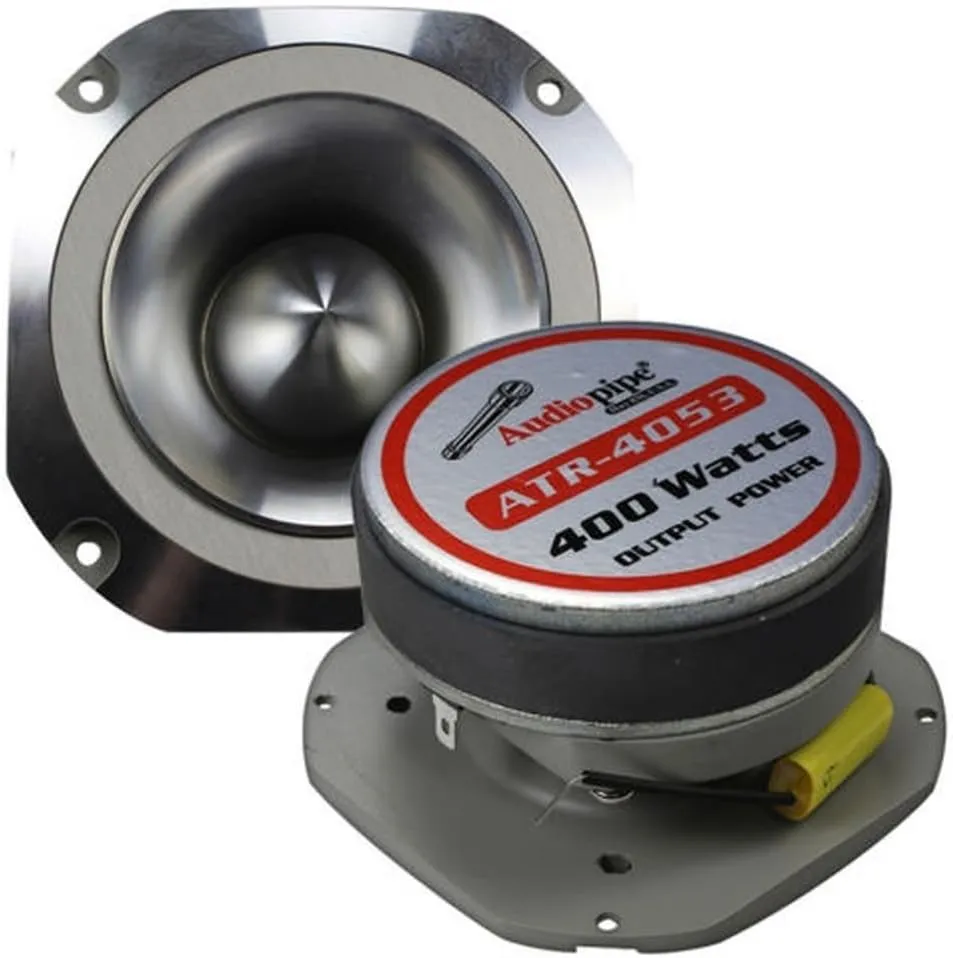

- ( 1 Pair ) 4" Super Tweeters
- 1.5" High Temp. Kapton Voice Coil
- Diamond Chrome Cutting Finish - 200 Watts RMS / 400 Watts Peak Power Per Tweeter
- These Tweeters Measure 4" square and have amounting depth of 2.2" / 55mm"
Specifications: ATR-4053
Nominal Diameter: 4" x 4" / 102mm x 102mm
Nominal Impedance: 4-8 Ohms
RMS Power Handling: 200 Watts
MAX Power Handling: 400 Watts
Sensitivity (lw/lm): 107 dB
Frequency Response: 3000Hz-22KHz
Pair or Single: Single / Individual
Voice Coil Diameter: 1.5" / 38mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum
Magnet Material: Ferrite
Dimensions:
Overall Diameter: 4"/ 102mm
Overall Depth: 2.6" / 66mm
Front Mount Baffle Cutout: (Cut Hole) 3.6" / 92mm
Mounting Depth: 2.2" / 55mm
Motor Diameter: 3.5" / 90mm
INSTALLATION INSTRUCTIONS
If you purchased a Crossover Network for your woofer, Midrange or Tweeter system, you do not need to connect a condenser.
If your system does not include a Crossover Network, you must connect a capacitor as follows:
1. Connect either end of the capacitor to the positive terminal ( ) of speaker.
2. Connect other end of the capacitor to the speaker wire harness; be certain to connect to the positive side of the harness, which is the radio output ( ) side.
3. To get better sound performance, it is recommended to use capacitor 1.5μF/250V for this unit.
